For Field

実際に弊社が施工したメガソーラーの現場を例に
写真をご覧いただきながらメガソーラーの設置の流れをご紹介いたします。

設置場所の調査

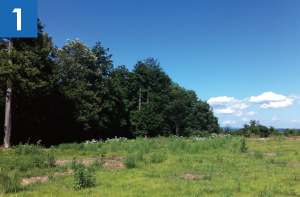

遊休地

Idle land in Tochigi prefecture.

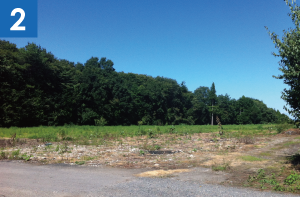

雑木林の遊休地

雑草が生え、雑木林が邪魔になっています。

設置場所の整地

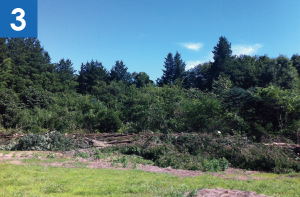

木が邪魔になっている遊休地

木の陰の影響を受けている部分を減らすため邪魔な木の伐採をします。

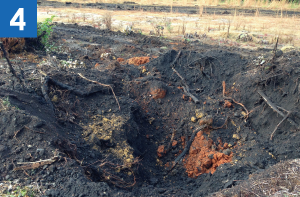

抜根した様子

Takeover the fat root of trees and shrubs.

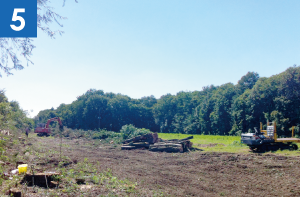

雑草が除去された遊休地

雑草の除去します。

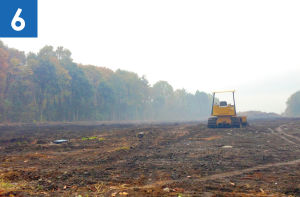

石や岩が除去された遊休地

Remove big rock, stone, etc.

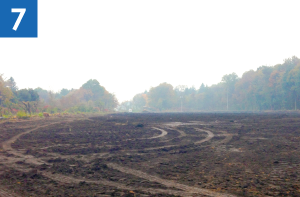

基礎が組める状態の遊休地

基礎を組める状態になりました。

基礎設置(コンクリート基礎の場合)

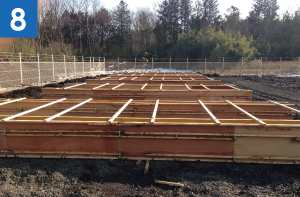

コンクリート基礎の型枠

Set the basis mold.

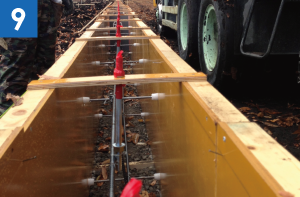

架台と連結するアンカーボルトが設置された基礎

Establish the stand and anchor bolt.

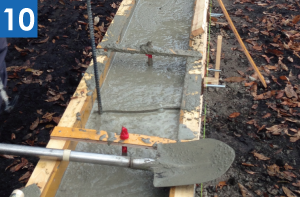

コンクリートを流し込んだ写真

Pure into the concrete and put out of useless air.

架台の設置

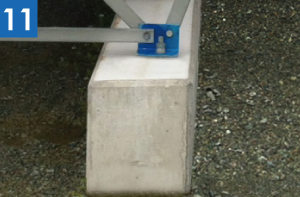

コンクリート基礎に設置された架台

Establish the basis concrete base.

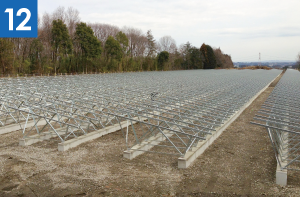

すべての基礎に設置された架台

All of basis concrete base done.

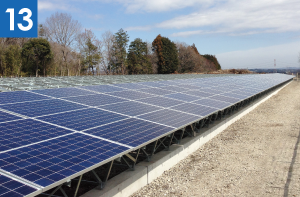

架台に設置された太陽光パネル

Establish panel.
Wiring for the electrical construction work.

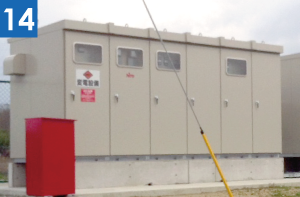

キュービクル

Setting of high voltage transformer substation equipment done.

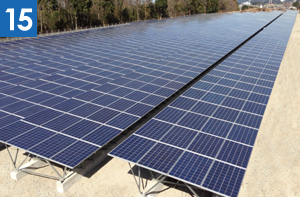

大規模な太陽光発電システム

メガソーラーの完成です。
